B-Stock with Full Warranty
Return that may have slight traces of use.
Return that may have slight traces of use.

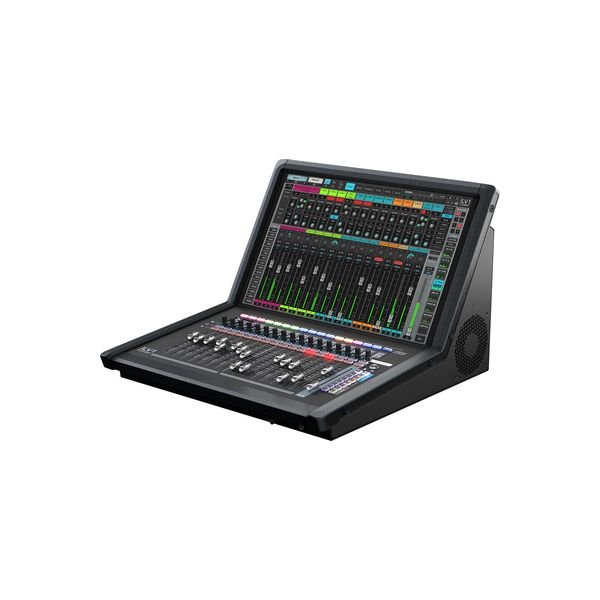

Digital Live Mixer
- 64 mono/stereo inputs
- 44 mono/stereo busses
- 32-bit Float Mix Engine with 44.1-96 kHz
- Latency: 0.8 ms
- 16 waves signature preamplifier
- 12 line outputs
- Eight mute groups and 16x link DCAs with spill function
- One AES3 In
- Two AES3 Out
- Four SoundGrid connections: 2x Ethercon, 2x RJ45
- One HDMI output
- 21.5″ Multi-Touchscreen
- 17x 100 mm Alps-Motorfader
- 17 encoders with mini display and LCD display
- Select/Mute/Solo buttons per channel
- 16 layers with utility buttons and tempo pad
- 16+2 user-customisable shortcut buttons
- Processing with compressor, EQ, Dynamic EQ, Vocal Tuning, Feedback Control, Saturation & FX
- 8-slot rack for eight plug-ins per channel
- Immersive in-ear mixing eMo IEM (software upgrade required, not included)
- Dugan automixing (software upgrade required, not included)
- Built-In Ultra-Low-Latency SoundGrid Server
- Expandable to up to 14 SoundGrid compatible devices including Dante and MADI converters
- Recording of 16 tracks locally on USB and 128 tracks on remote computer possible
- Dual Power Supply
- Remote Control Apps: MyFOH, MyMon
- Dimensions (W x H x D): 559 x 401 x 561 mm
- Weight: 17.2 kg
- Includes Waves Tune Real-Time, F6 Dynamic EQ, eMo Q4 EQ, eMo D5 Dynamics, eMo F4 Filter, GEQ, X-FDBK, Primary Source Expander, R-Comp, R-Bass, H-Delay, Doubler, R-Verb, TrueVerb, GTR3, Magma Tube Channel Strip, eMo Generator
30 30-Day Money-Back Guarantee
3 3-Year Thomann Warranty
-
Available since
January 2025 -
Item number
609380 -
Sales Unit
1 piece(s) -
User Interface
Physical/remote -
Number of faders
17 -
DSP Input channels
64 -
Mic Preamp
16 -
Physical outputs
12 -
Digital stagebox connection
Soundgrid -
Hotspot
No -
Multitrack Record
Yes -
integratated Player/Rec via USB/SD
stereo -
19″ Rackmount
No -
DSP Output Channels
44 -
Busses
44 -
Mono-Line Input
16 -
Stereo-Line Input
16 -
Ethernet
Ethernet -
Soundcard interface
No -
Recorder Format
WAV/MP3 -
Scribble Strips
Yes -
RTA
Yes -
Delay Input
Yes -
Delay Output
Yes -
Matrix
8 -
DCA/VCA Groups
16 -
Midi Connector
No -
Sample rate
44,1/48/96 kHz -
Monitor Apps
Yes -
Separate Personal Monitor system
No -
Expansion Card slots
0 -
Digital ADAT
No -
Digital SPDIF
No -
Digital AES3/ASESEB
Yes -
Digital MADI
No -
Digital Dante
No -
110V capable
Yes -
Case
Included -
Height
401 mm -
Width
559 mm -
Depth
561 mm -
Weight
17,2 kg -
