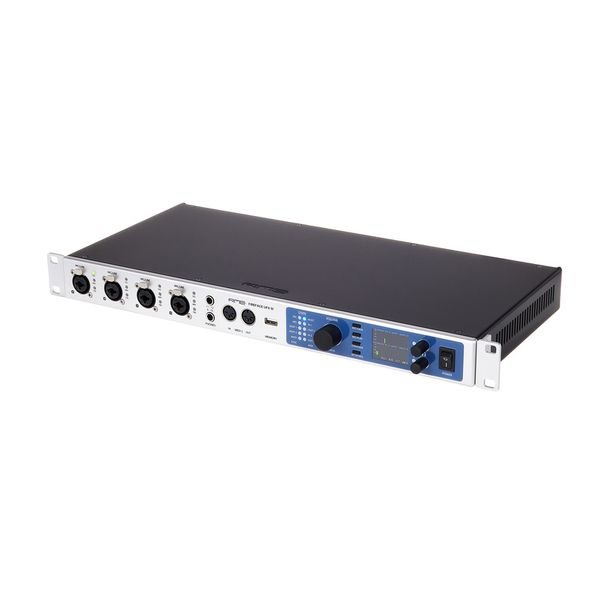

USB 3.0 Audio Interface
- 188-Channel, 24-bit / 192kHz AD/DA converter
- DURec (Direct USB Recording)
- SteadyClock FS
- MADI I/O (64 channels)
- TotalMix FX
- Built-in DSP
- +48V phantom power
- TFT display
- AKM chips (AK5574 AD / AK4490 DA converters)
- DC-coupled analogue outputs
- Lock keys
- Remap keys
- USB 3 Class Compliant
- Construction: 19″ / 1 U
- Dimensions (W x H x D): 483 x 44 x 210 mm
- Weight: 2.8 kg
- Expandable with optional RME ARC remote control (not included)
Connections
- 4 Mic/Line inputs: XLR/jack 6.3 mm combo
- 8 Line inputs: 6.3 mm jack balanced
- 2 Line outputs: XLR
- 6 Line outputs: 6.3 mm jack balanced
- 2 Stereo headphone outputs: 6.3 mm jack
- 2 Optical inputs and outputs ADAT / S/PDIF
- AES input and output XLR
- Word clock input and output BNC
- MADI input and output
- 2 MIDI inputs and outputs
- Remote input for optional RME ARC
- USB on the front
30 30-Day Money-Back Guarantee
3 3-Year Thomann Warranty
-
Available since
March 2023 -
Item number
563014 -
Sales Unit
1 piece(s) -
Recording / Playback Channels
94×94 -
Number of Mic Inputs
4 -
Number of Line Inputs
8 -
Instrument Inputs
4 -
Number of Line Outs
8 -
Headphone Outs
2 -
Phantom power
Yes -
Number of S/PDIF Connectors
2 -
Number of ADAT Connectors
2 -
Numer of AES/EBU Connectors
1 -
Number of MADI Connectors
1 -
Ethernet
0 -
Other Connectors
USB -
MIDI interface
Yes -
Word Clock
1xIn, 1xOut -
Max. sample rate (kHz)
192 kHz -
Max. resolution in bit
24 bit -
USB Bus-Powered
No -
Incl. power supply
Yes -
USB Version
3.0 -
Width in mm
483 mm -
Depth in mm
210 mm -
Height in mm
44 mm -
Connection Format
USB port Type B -
Included in delivery
USB cable -
Zero latency monitoring
Yes -
