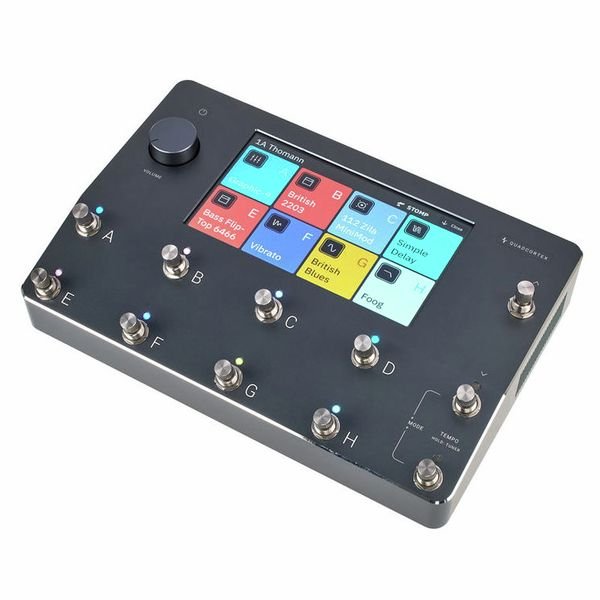

Neural DSP Quad Cortex

Multi Effect Pedal for Electric Guitar and Electric Bass

• Powerful and compact effect unit with 2 GHz dedicated DSP from the Quad-Core SHARC architecture
• Unique “neural capture” network architecture enables the analysis and simulation of the dynamics and sound of other amplifiers
• Built-in Wifi for sharing rig capture presets, backups and firmware updates
• The integrated Superior Modeling Technology enables a constantly growing collection of algorithms with uncompromising sound quality
• With custom rig captures from some of the best producers and sound designers
• Very low latency and unparalleled routing flexibility
• 7″ multi-touch display
• Cabsim with over 1000 impulse responses
• 11 newly developed combination foot switches with rotary control function
• Controls: Volume
• Power supply connection: Barrel connector 5.5 x 2.1 mm, centre negative
• Power supply via 12 V DC mains adapter (included)
• Dimensions (W x D x H): 290 x 191 x 48 mm
• Weight: 1.98 kg

Note: Battery operation is not possible

Connections:

• Input 1 and 2: Combo XLR / 6.3 mm jack
• FX Loop 1: 2 x 6.3 mm jack
• FX Loop 2: 2 x 6.3 mm jack
• Output 1 and 2: 2 x XLR
• Output 3 and 4: 2 x 6.3 mm stereo jack
• Headphone connection: 6.3 mm stereo jack
• Expression 1 and 2: 2 x 6.3 mm stereo jacks
• MIDI In and Thru/Out
• USB
