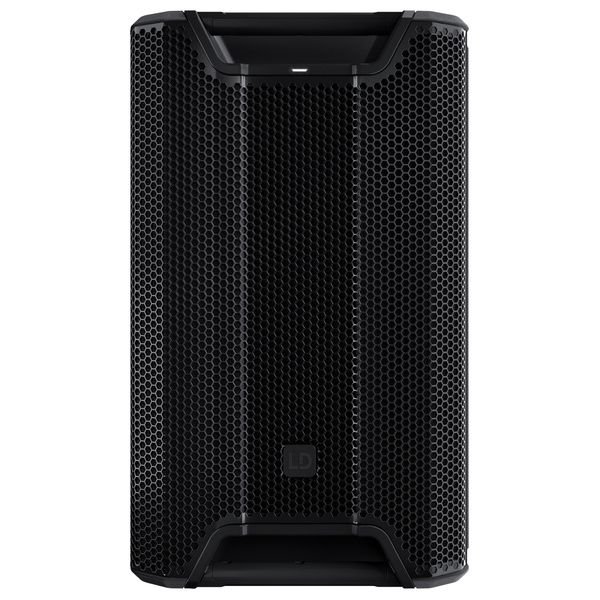

Active 12 Way Full-Range Speaker
- Vertical and horizontal application thanks to coaxial design with rotatable, BEM-optimised CD horn with 800 Hz crossover frequency
- SysCore DSP with FIR/IIR filters and crossover for distortion-free sound
- Class D amplifier
- Speaker configuration: 12″ woofer and 3″ titanium cone high-frequency driver
- Power: 1000 W RMS / 2000 W Peak
- Frequency range: 53 – 20.000 Hz
- MAx. SPL: 133 dB
- Dispersion pattern (H x V): 90° x 50°
- Monitor angle: 55°
- Bluetooth 5.1 and stereo streaming (TWS) with two ICOA PROs
- Free app for remote customisation via smartphone and tablet (iOS and Android)
- Front-LED display
- Protective functions: Multi-band limiter, short circuit, overheating, direct current
- 4 Handles
- 35 mm pole mount (0°, 5° tilt angle)
- 6x M10 rigging points
- Mic/Line input: 2 x XLR Combo
- Mix Out output: XLR 3-pin male
- Dimensions (W x H x D): 376 x 628 x 394 mm
- Weight: 23 kg
- Colour: Black
30 30-Day Money-Back Guarantee
3 3-Year Thomann Warranty
-
Available since
April 2025 -
Item number
614508 -
Sales Unit
1 piece(s) -
Power (Manufacturers Specs)
2000 W -
Bass Speaker in Inch
12″ -
Ways
2-Way -
Colour
Black -
Weight
23,1 kg -
Housing Material
Plastic -
Analog Inputs
2 -
Microphone Input
2 -
Line Out
XLR -
Media Player
BT -
Remote Control
BT -
Effects
No -
Low Cut
No -
Monitor Angle
Yes -
RMS Power
1000 W -
Width
376 mm -
Depth
394 mm -
Height
628 mm -
Sound Pressure in dB
133 dB -
Number of HT Speaker
1 -
Number of HT Speakers
1 -
Number of HT-Speaker
1 -
HT Speaker in Inch
3 -
Number of Midrange Speaker
0 -
Midrange Speaker in Inch
without -
Number of Bass Speaker
1 -
Number of Bass Speakers
1 -
Accu
No -
Stand Flange
35 mm -
Construction
Standard -
Flyable
M10 -
Construction Type
Standard -
Using for
PA -
Mounting Point
M10 -
Line Input
Yes -
Main EQ
Yes -
Master EQ
Yes -
True Wireless Stereo
Yes -
Voice Assistant
No -
Horizontal Beam Angle
90 ° -
Vertical Beam Angle
50 ° -
Handheld / Headset
No -
Wireless Mic Handhleld / Headset
No -
Frequency Range (-10dB) from
53 Hz -
Frequency Range (-10dB) to
20000 Hz -
Beam Angle (Hor)
90 ° -
