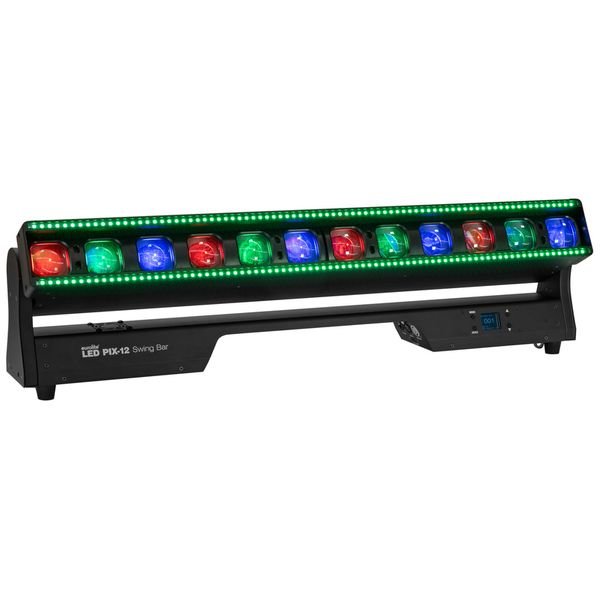

Eurolite LED PIX-12 Swing QCL Zoom Bar

Motorised Tiltable LED Light Effect Strip

• 12 x 40 W 4-in-1 QCL RGBW LEDs (homogeneous colour mixing)
• LEDs can be controlled individually
• Dispersion angle: 2° – 28°
• 164 x 0.2 W SMD 5050 3-in-1 TCL RGB LEDs (homogeneous colour mixing) with a dispersion angle of 120°
• Beam, strobe and uplight effect, positioning within 180° TILT
• Exact 16-bit resolution with dimmer
• Motorized zoom
• Infinitely variable colour mixing
• Background colours adjustable
• Adjustable running light
• Adjustable chaser light
• Dimmer curves with adjustable response behaviour
• Dimmer speed (step response) adjustable
• Pulse width modulation variable
• Six integrated show programmes
• Controllable via stand-alone, master/slave function, DMX (28; 34; 67 channels), QuickDMX via USB (optional), Art-Net, RDM, DMX failure modes (Hold; Blackout; Auto)
• Device cooling via fan in the base
• Flicker free
• Single-colour LC display
• Four ubber feet
• Mains input and mains output for easy interconnection of up to eight devices
• Power supply: 100-240 V AC, 50/60 Hz
• Power consumption: 310 watts
• Protection rating: IP20
• Power connection: Power Twist In / Out
• DMX connection: XLR 3-pin In / Out
• Network connection: Protocol: Art-Net 3 via two RJ-45 E-con (female) installation version
• Dimensions (W x D x H): 100 x 12 x 28.5 cm
• Weight: 15.7 kg
• Includes Omega brackets
