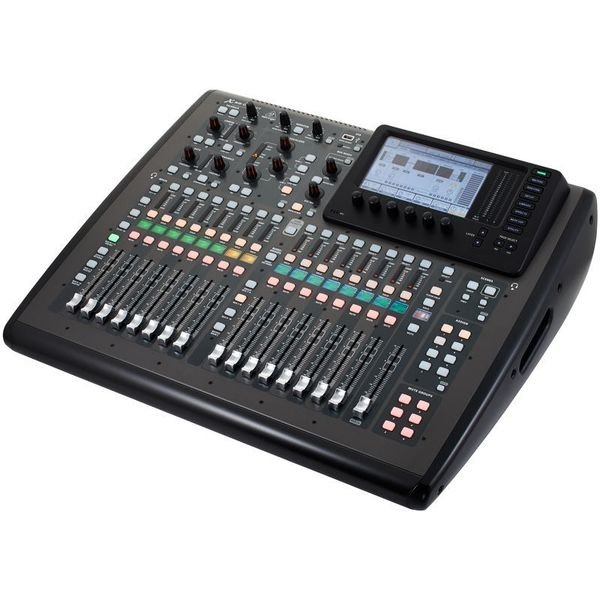

Digital Mixer
- 16 XLR Mic/ line Inputs
- 8 Stereo FX Returns
- 16 Mix buses
- 6 Matrix buses with insert
- 6 Mute groups
- 8 DCA groups
- 8 XLR Outputs
- 6 AUX In: 6.3 mm Jack (optionally 2 via RCA)
- 6 AUX Out: 6.3 mm Jack (optionally 2 via RCA)
- AES/EBU Stereo digital output
- 2 Headphone outputs: 6.3 mm Jack
- Stereo monitor/ control room output with dim function
- 32 In/ 32 out USB audio interface
- 100 mm Motor fader
- 7″ TFT colour display
- LCD Display per channel
- 4-Band full-parametric EQ per channel
- Adjustable delays in all channels
- Virtual effect rack with 8 FX slots
- Built-in stereo USB recorder
- Remote control via ethernet
- Compatible with the Behringer P-16 personal monitoring system
- Full MIDI implementation
- Dimensions (H x W x D): 21.3 x 63.1 x 51.2 cm
- Weight: 15.5 kg
- Suitable expansion boards: Dante: Art. 334096, Madi: Art. 337831
30 30-Day Money-Back Guarantee
3 3-Year Thomann Warranty
-
Available since
July 2013 -
Item number
308703 -
Sales Unit
1 piece(s) -
User Interface
Physical/remote -
Number of faders
17 -
DSP Input channels
32 -
Mic Preamp
16 -
Physical outputs
14 -
Digital stagebox connection
AES50 -
Hotspot
No -
Multitrack Record
Yes -
integratated Player/Rec via USB/SD
stereo -
19″ Rackmount
No -
Max.number of input channels
32 -
Microphone Inputs
16 -
Analog Line Inputs
32 -
Analog Line Outputs
16 -
DSP Output Channels
24 -
Busses
16 -
Analog in/ out with plug-in card expandable
Yes -
Digital Inputs
None -
Mono-Line Input
6 -
Digital Outputs
AES -
Stereo-Line Input
0 -
Digital in-/ outputs expandable
Yes -
Motorfader
Yes -
Computer interface
USB, Ethernet -
Ethernet
Ethernet -
MIDI-interface
Yes -
Special Features
Compatible with BEHRINGER P-16 Personal Monitoring System, 32 in / 32 out FW Interface -
Soundcard interface
USB-B -
Recorder Format
WAV -
Scribble Strips
Yes -
RTA
Yes -
FX Processor
8 -
31 Band EQ
8 -
Delay Input
Yes -
Delay Output
Yes -
Matrix
6 -
DCA/VCA Groups
8 -
Midi Connector
Midi-Din -
Sample rate
48 kHz -
Monitor Apps
Yes -
Separate Personal Monitor system
Optional -
Expansion Card slots
1 -
Digital ADAT
Optional -
Digital SPDIF
No -
Digital AES3/ASESEB
Yes -
Digital MADI
Optional -
Digital Dante
Optional -
110V capable
Yes -
Case
Included -
Height
215 mm -
Width
625 mm -
Depth
510 mm -
Weight
15,4 kg -
