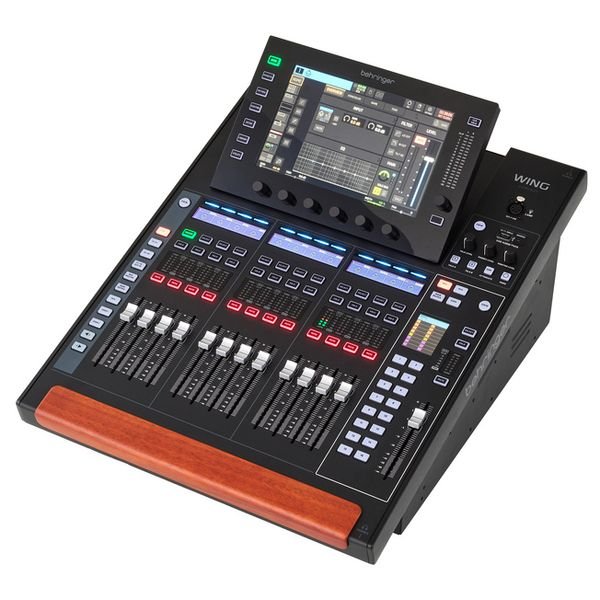

Behringer WING Compact

48-Channel Full Stereo Digital Mixer

• Fully compatible with Behringer X32/Midas M32 consoles and stageboxes
• 28 busses: 16 stereo auxes, 8 stereo matrixes, 4 stereo mains
• 13 motor faders 100 mm
• 10.1″ Multi-touch display with adjustable angle
• 24 Midas PRO microphone preamplifiers
• Three AES50 ports: 144 inputs and outputs
• Sends on Fader Workflow with colour TFT display and hot keys for 44 masters, buses, mains, matrices, DCAs
• Built-in USB audio/MIDI interface for 48 audio channels
• Dual SD card live recorder/player with up to 64 tracks
• Internal AoIP module can expand Ethernet ports with optional 64-channel inputs and outputs to Dante and Waves SoundGrid networks
• 16 true stereo effects processors
• Three plug-in slots for gate, dynamics and EQ per channel
• 40 stereo input channels with five variable plug-in slots each
• Stereo aux input channels with one FX insert slot and 4-band parametric EQ
• Eight mute groups and eight DCAs
• Two ethernet ports with built-in switch for networked remote control and optional AoIP via Waves SoundGrid and Dante
• Rear expansion slot for optional 64-channel audio interface and network expansion cards
• StageConnect host interface for sharing up to 32 channels in both directions
• Two programmable GPIOs
• 5-Pin MIDI In and Out
• Two headphone outputs
• DAW remote control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
• Offline editing and remote control via WING-CoPilot
• WING-Q and WING-Edit software for desktop and mobile
• 19″ rack installation possible in three positions
• Dimensions (W x H x D): 453 x 225 x 574 mm
• Weight: 15.9 kg
